Stainless steel standard D glass clamp for 6mm thickness glass G103
- Material: Stainless steel 304 or 316;
- Surface treatment: satin brushed or mirror polished;
- Types：
- G103： flat back used on rectangular post or flat surface;
- G103R: radius/round back used on round post dia 42.4mm or 50.8mm
- Glass thickness: 6mm(1/4")
- ISO9001:2008
- MOQ: 1 piece
- Application area: glass panels holder for balcony railing,terrace railing, staircase railing.

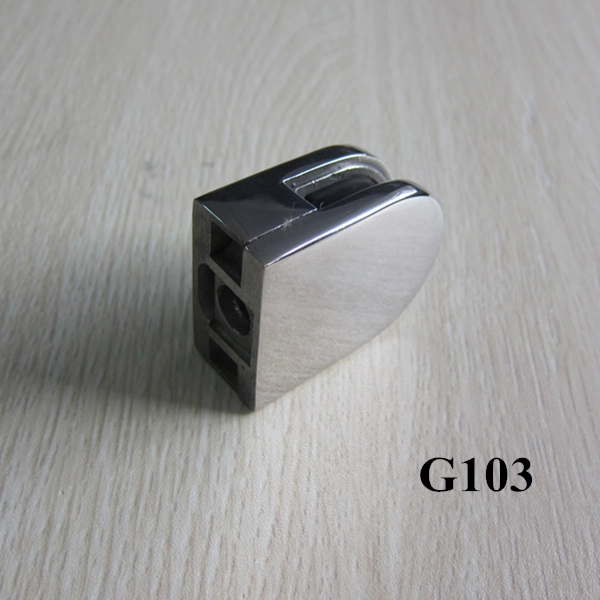

Stainless steel standard D glass clamp for 6mm thickness glass
G103
Flat back for 6mm(1/4") glass

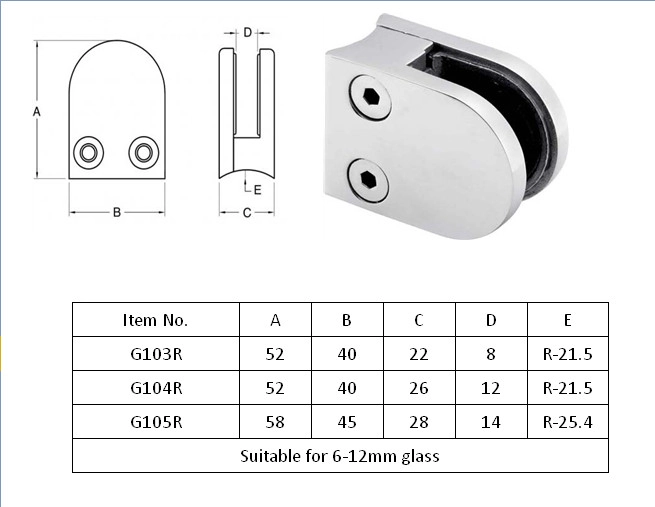

G103R
Radius/round back used on round post dia 42.4mm or 50.8mm
As per you glass thickness demand, we have 8mm, 10mm, 12mm Square or D glass clamp;
G104 for 8-10mm glass
G105 D glass clamp for 12mm glass(1/2")

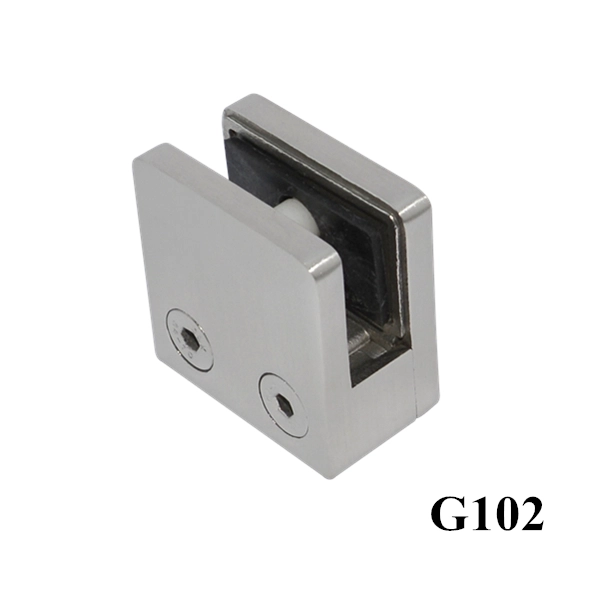

G102 square shape flat back glass clamp for 8-10mm glass
G102R Round back square glass clamp for 8-10mm glass
Nonstandard glass clamp:
Straight
