China shenzhen cheap stainless steel glass pool fence gate hinge self closing gate hinge
- Pool Gate Glass Spring Hinge
- Model: Glass to Glass Hinge
- Model No.: G-G1
- Pool Gate Hardware Kit includes 1 X Magnetic latch and 2 X Self-closing hinges ,all screws and free installation tools
- Marine grade STAINLESS STEEL 316 made with a fantastic great MIRROR or SATIN polish finish.
- Suits 8mm/10mm/12mm toughened glass gate
- Model G-G1 Glass to Glass Pool Gate Hinge
- 2 of self-closing spring hinge to suit Glass/ Glass application
- Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate, will fit onto 8/10/12mm fixed glass
- 1 of glass to glass hinge with 2 SCREWS GAP 42 mm
- Pool gate glass panel hole – 20mm in from glass edge, 42mm apart.
- Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate
Hinge description:

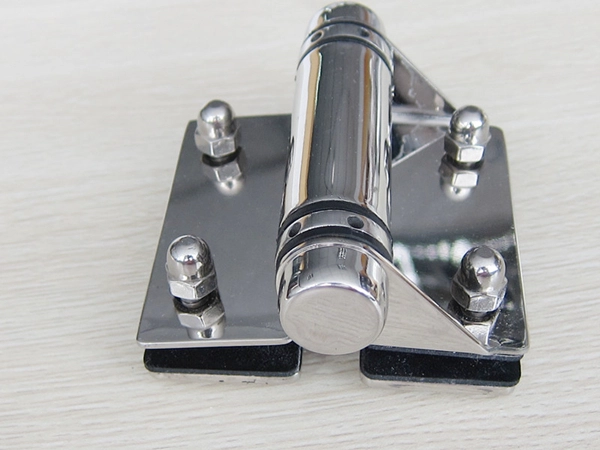

Pool Gate Glass Spring Hinge
Model: Glass to Glass Hinge
Model No.: G-G1
Pool Gate Hardware Kit includes 1 X Magnetic latch and 2 X Self-closing hinges ,all screws and free installation tools.
Marine grade STAINLESS STEEL 316 made with a fantastic great MIRROR or SATIN polish finish.
Suits 8mm/10mm/12mm toughened glass gate

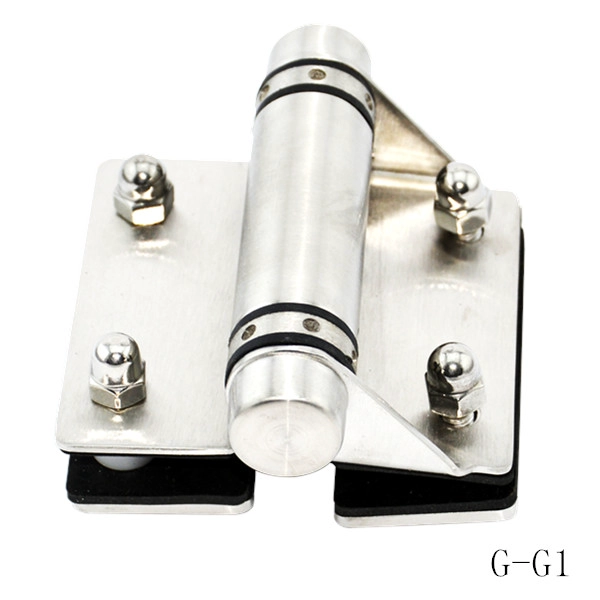

Model G-G1 Glass to Glass Pool Gate Hinge
2 of self-closing spring hinge to suit Glass/ Glass application
G-G1 Hinge dimension:
1 of glass to glass hinge 77.5mm WIDTH
1 of glass to glass hinge 81.25mm LENGTH
1 of glass to glass hinge 16.5mm THIKCNESS
Distance between two screws 47.5mm
Hinge cap: diameter 12mm

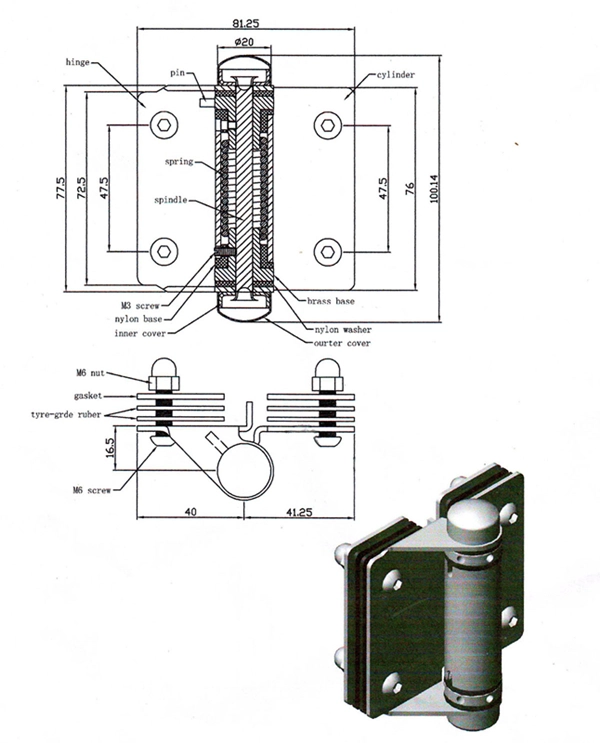

Please refer to below dimension drawing:
G-G1 Hinge fittings included as follows:
1 X hinge
1 X pin
4 X cylinder
2 X spring
1 X spindle
1 X M3 screw
4 X nylon base
2 X inner cover
4 X brass base
2 X nylon washer
2 X outer cover
4 X M6 nut
2 X gasket
4 X regrade rubber
4 X M6 screws
G-G1 Hinge technical information:
Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate, will fit onto 10/12mm fixed glass
1 of glass to glass hinge with 2 SCREWS GAP 42 mm

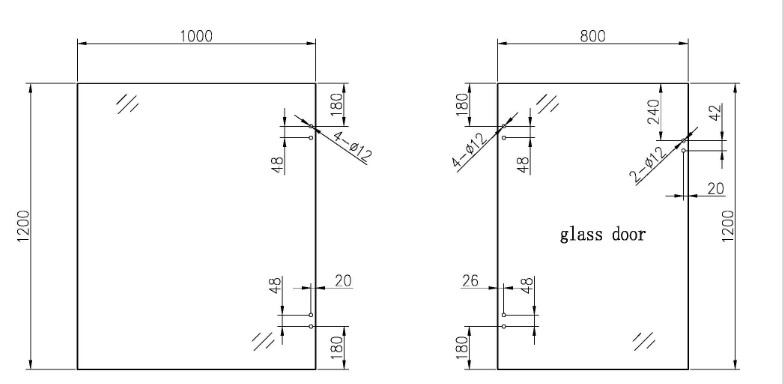

Pool gate glass panel hole – 20mm in from glass edge, 42mm apart.
Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate
please download here for the technical drawing:

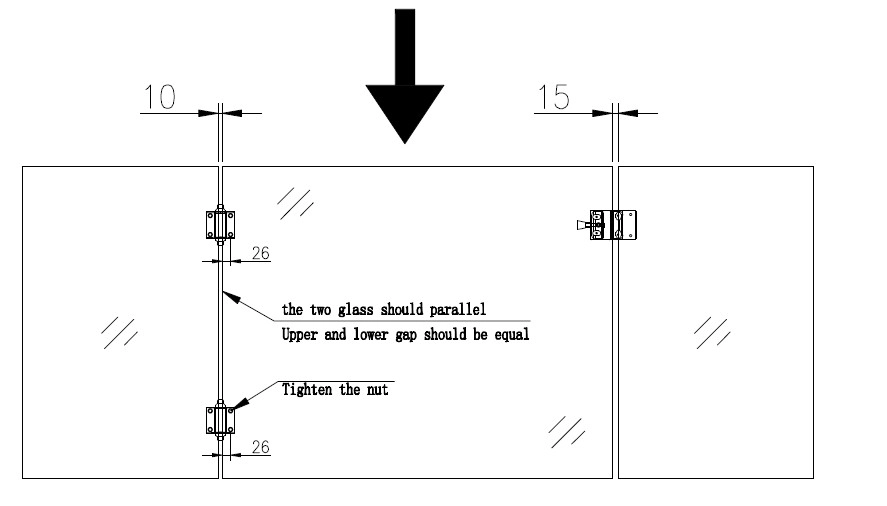

For Glass Pool Gate Hinge & Installation, Please see below vedio link:
https://www.youtube.com/watch?v=DKZlF0cAt1M

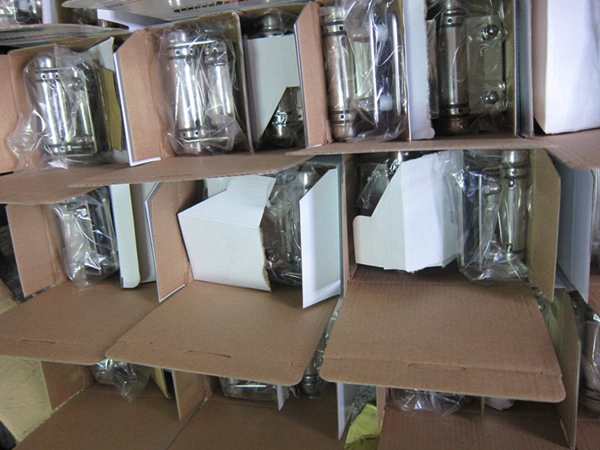

For Glass Pool gate hinge Packaging, Please below packaging photos:
