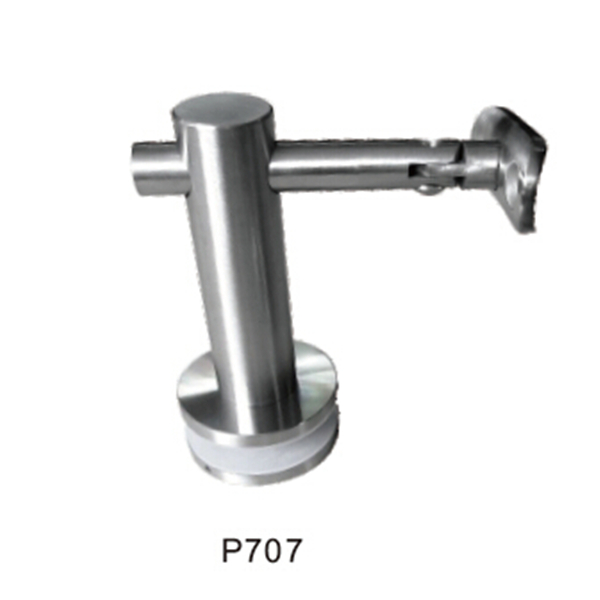

stainless steel adjustable glass mounting handrail bracket P707

stainless steel adjustable glass mounting handrail bracket P707

  • Model: P707
  • Material: 304 grade stainless steel or 316 stainless steel
  • Finish: brushed stainless steel or polished stainless steel
  •         satin or mirror finish
  • Design: adjustable design

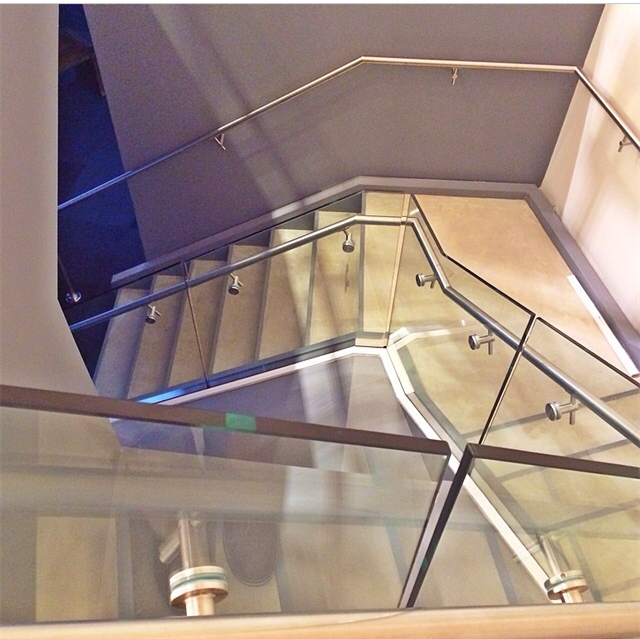

  • Description:It is glass mounting side fixed handrail brackets. One side is fixed on the glass,the other side is fixed on the top handrail.
Model P707 glass mount handrail bracket is adjustable design.

One side is fixed on the glass,the other side is fixed on the top handrail.

Glass should be tempered glass or laminated glass.

Glass thickness can be 10mm or 12mm or 15mm or 12.76mm etc.

Glass height can be 900mm-1200mm .

Glass width can be 900mm-1500mm.

Top handrail size can be round 50.8mm or round 42.4mm or round 38mm or square 50*50mm or square 50*25mm or square 40*40mm.
